Logisim-evolution

by Logisim-evolution developers

Digital logic designer and simulator

Broad permissions Flathub reviewed GPL-3.0 v5.0.0
Install Source code

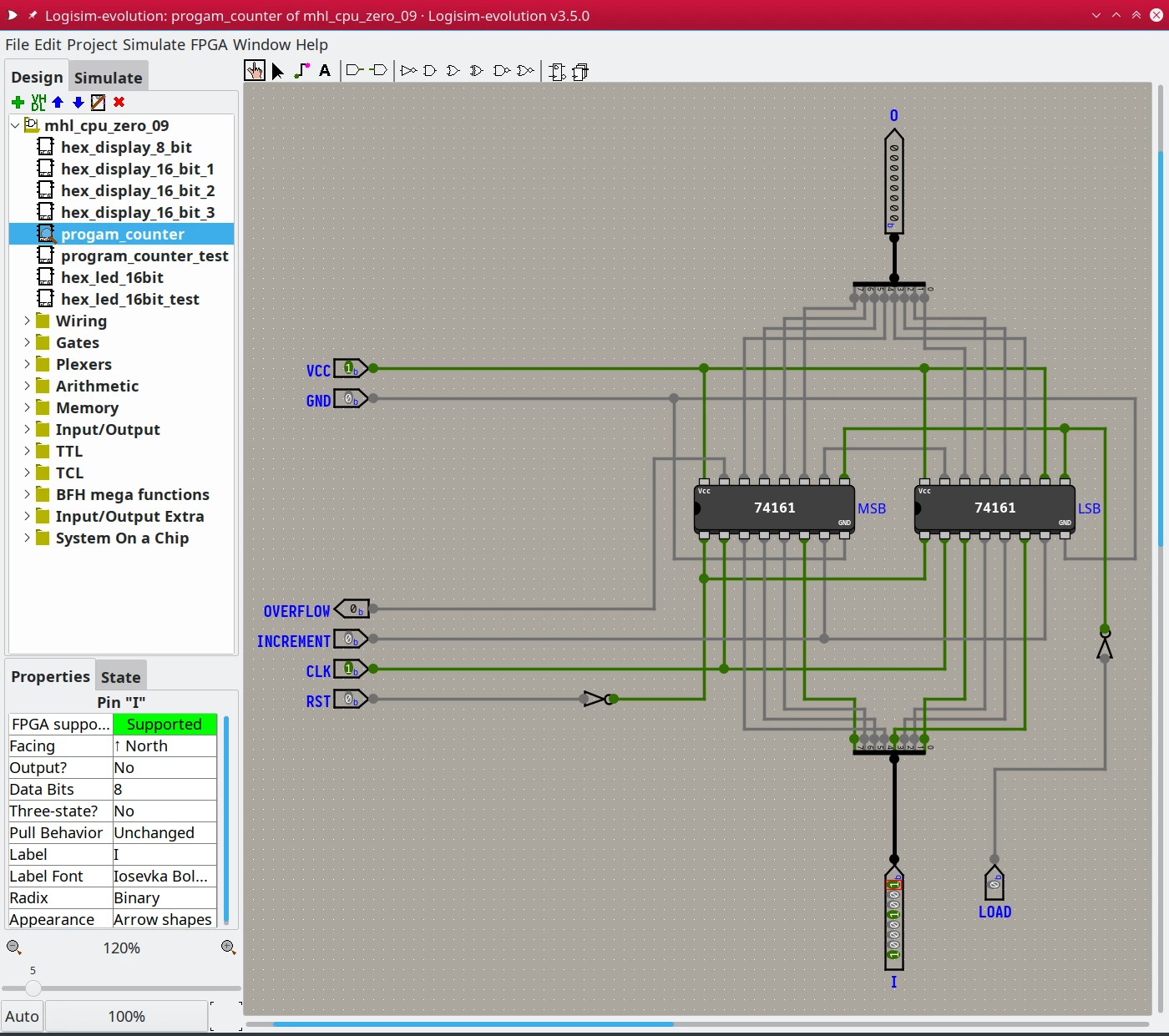

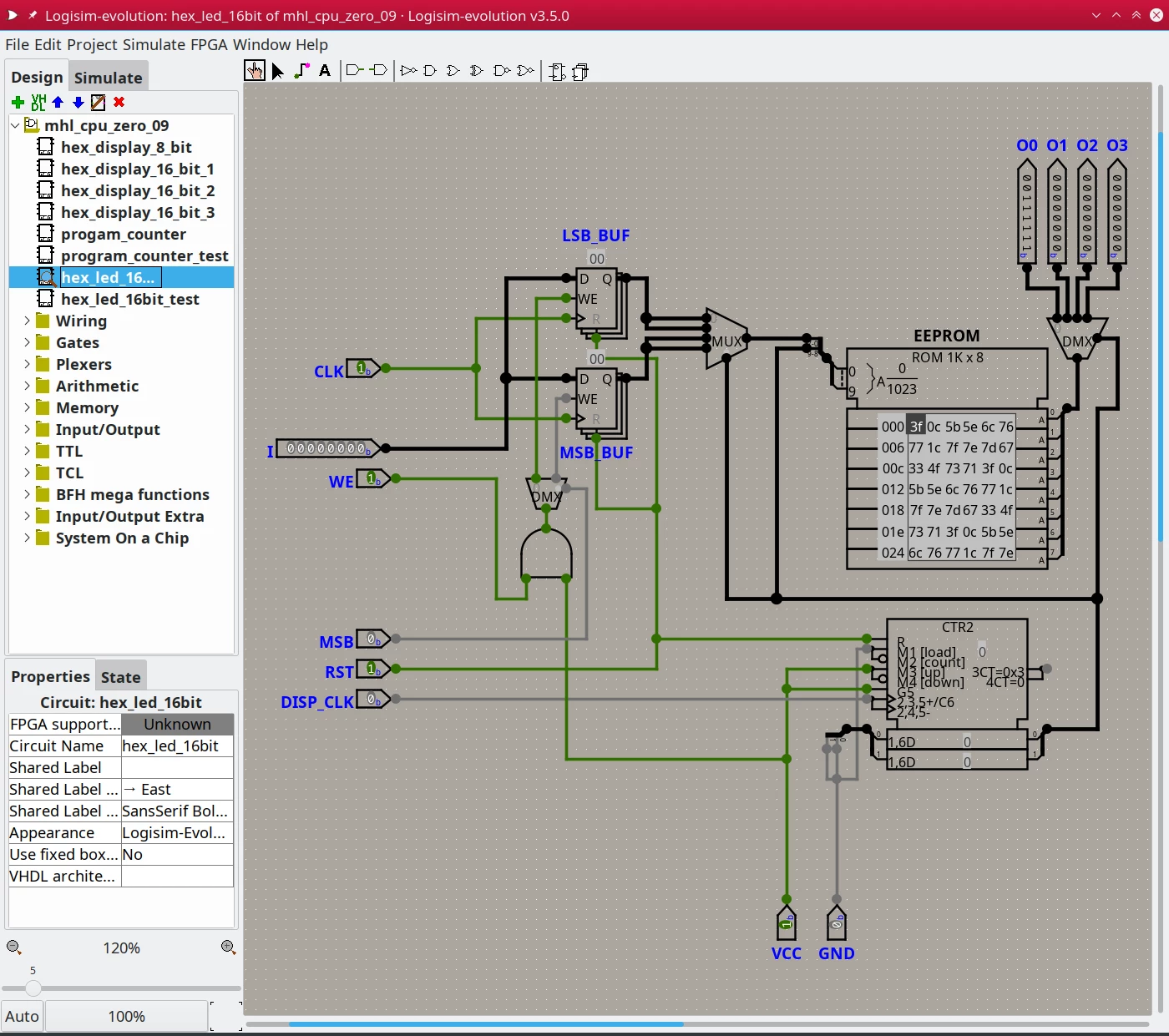

Screenshot 1 of Logisim-evolution Screenshot 2 of Logisim-evolution

About

Logisim-evolution is a completely free and open-source educational, cross-platform software for designing and simulating digital logic circuits.

Project highlights:

  • easy to use circuit designer
  • logic circuit simulations
  • chronogram (to see the evolution of signals in your circuit)
  • electronic board integration - schematics can now be simulated on real hardware
  • VHDL components (components whose behavior is specified in VHDL!)
  • TCL/TK console (interfaces between the circuit and the user)
  • huge library of components (LEDs, TTLs, switches, SoCs)
  • Supports multiple languages
  • and more!

Permissions

2 permissions weaken the sandbox. Flatsonar asks before installing.

  • X11 display: X11 lets apps read input and windows of other apps
    --socket=x11
  • full access to your home folder
    --filesystem=home
  • inter-process communication (needed for X11)
    --share=ipc

Who publishes this

On Flathub: the manifest was reviewed and built on Flathub's infrastructure, but the developer has not verified ownership of the app id.

  • installs a prebuilt binary instead of building from source
    source:prebuilt
  • on Flathub: manifest reviewed and built by Flathub; the developer has not verified the app id
    publisher:flathub

Maintenance

Recent activity on the upstream repository, or built and reviewed by Flathub.

No staleness signals: recent activity, or built and reviewed by Flathub.
