SolveSpace

by The SolveSpace Community, originally by Jonathan Westhues and other authors

A free (GPLv3) parametric 3d CAD tool

Broad permissions Flathub reviewed GPL-3.0-or-later v3.2
Install Source code

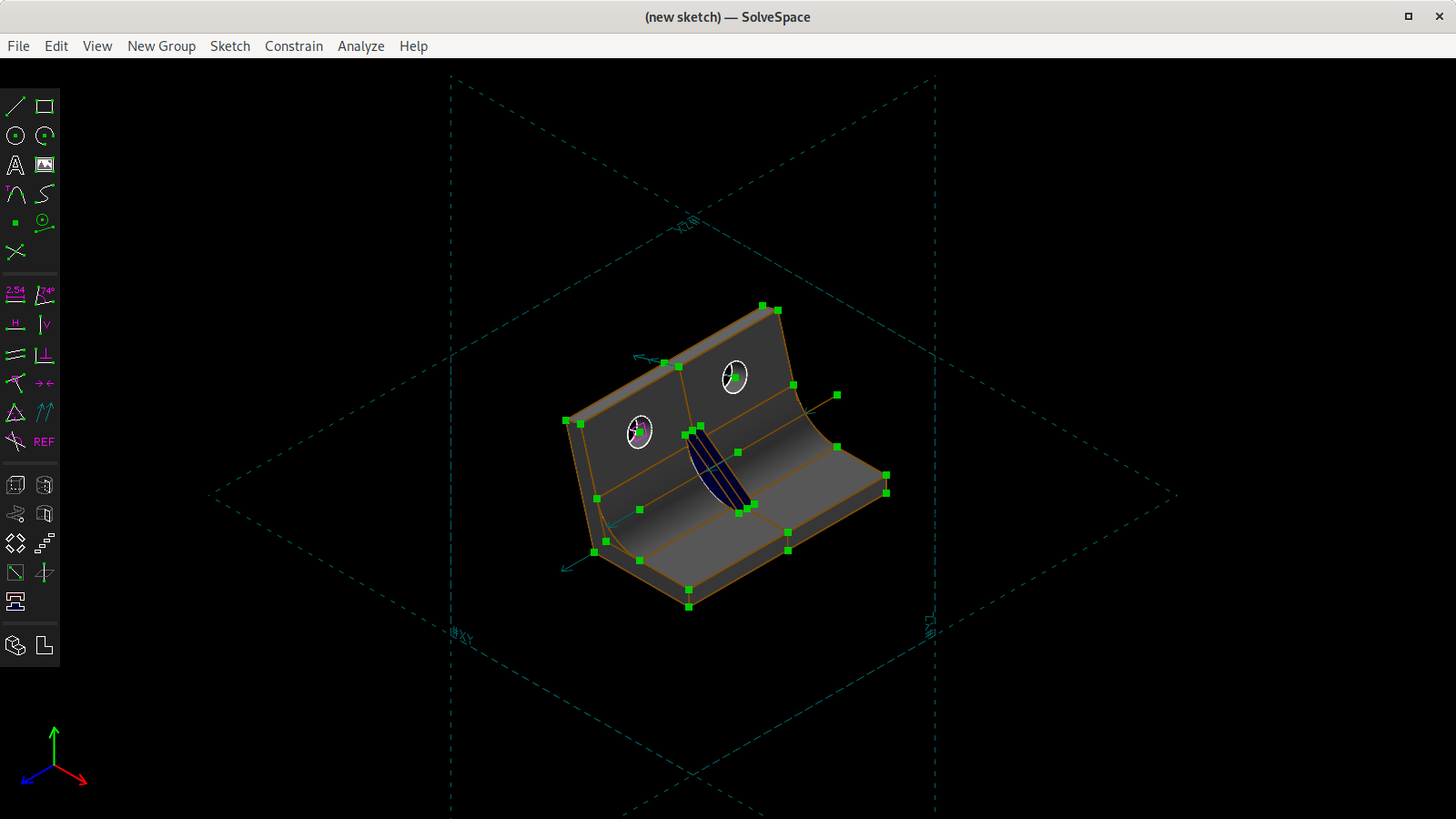

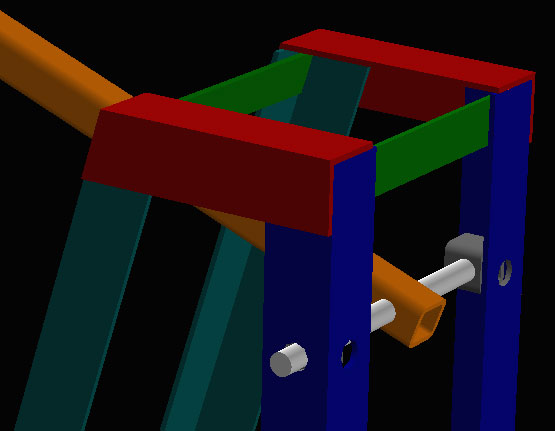

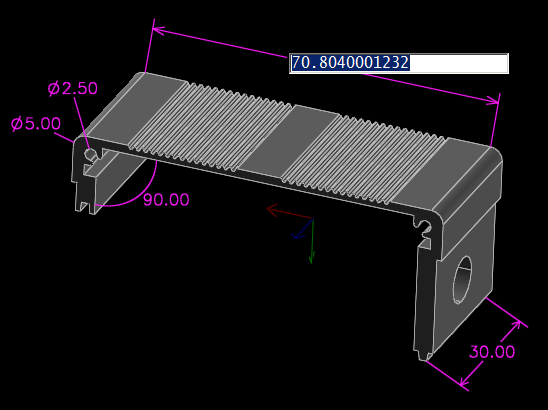

Screenshot 1 of SolveSpace Screenshot 2 of SolveSpace Screenshot 3 of SolveSpace Screenshot 4 of SolveSpace Screenshot 5 of SolveSpace Screenshot 6 of SolveSpace

About

SolveSpace is a free (GPLv3) parametric 2d/3d CAD (computer-aided design) tool. Applications include:

  • Modeling 3d parts — draw with extrudes, revolves/helix, and Boolean operations
  • Modeling 2d parts — draw the part as a single section, and export; use 3d assembly to verify fit
  • Modeling 3d-printed parts — export the STL or other triangle mesh expected by most slicers
  • Preparing 2D CAM data — export 2d vector art for a waterjet machine or laser cutter
  • Mechanism design — use the constraint solver to simulate planar or spatial linkages
  • Plane and solid geometry — replace hand-solved trigonometry with a live dimensioned drawing

Permissions

1 permission weaken the sandbox. Flatsonar asks before installing.

  • X11 display: X11 lets apps read input and windows of other apps
    --socket=x11
  • inter-process communication (needed for X11)
    --share=ipc
  • Wayland display
    --socket=wayland
  • X11 display, only when Wayland is unavailable
    --socket=fallback-x11
  • GPU acceleration
    --device=dri

Who publishes this

On Flathub: the manifest was reviewed and built on Flathub's infrastructure, but the developer has not verified ownership of the app id.

  • on Flathub: manifest reviewed and built by Flathub; the developer has not verified the app id
    publisher:flathub

Maintenance

Recent activity on the upstream repository, or built and reviewed by Flathub.

No staleness signals: recent activity, or built and reviewed by Flathub.
