KiCad
by The KiCad Developers
An EDA suite for schematic and circuit board design
Support the creators
Flatsonar is just the shop window. The people below made KiCad.
About

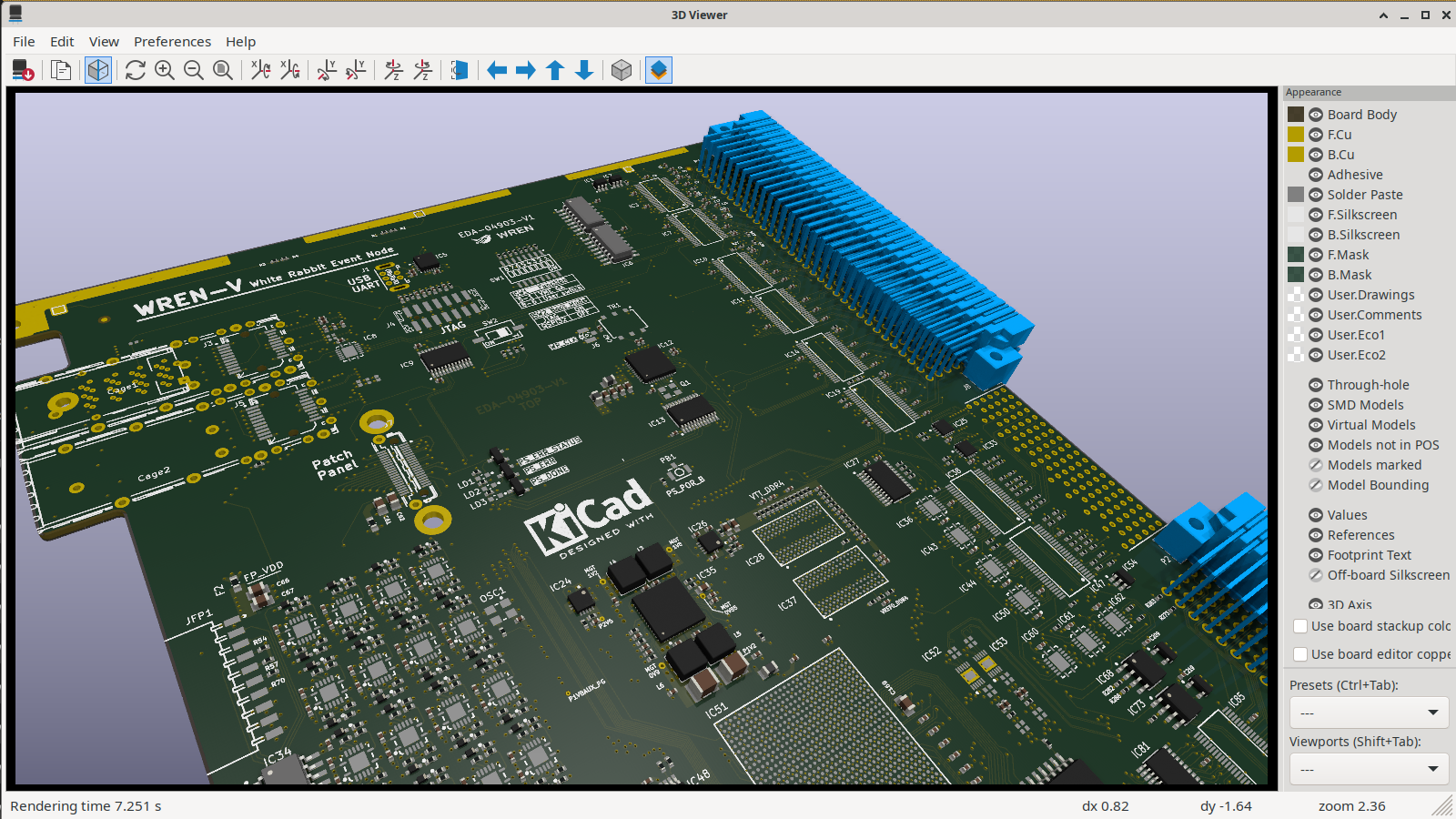

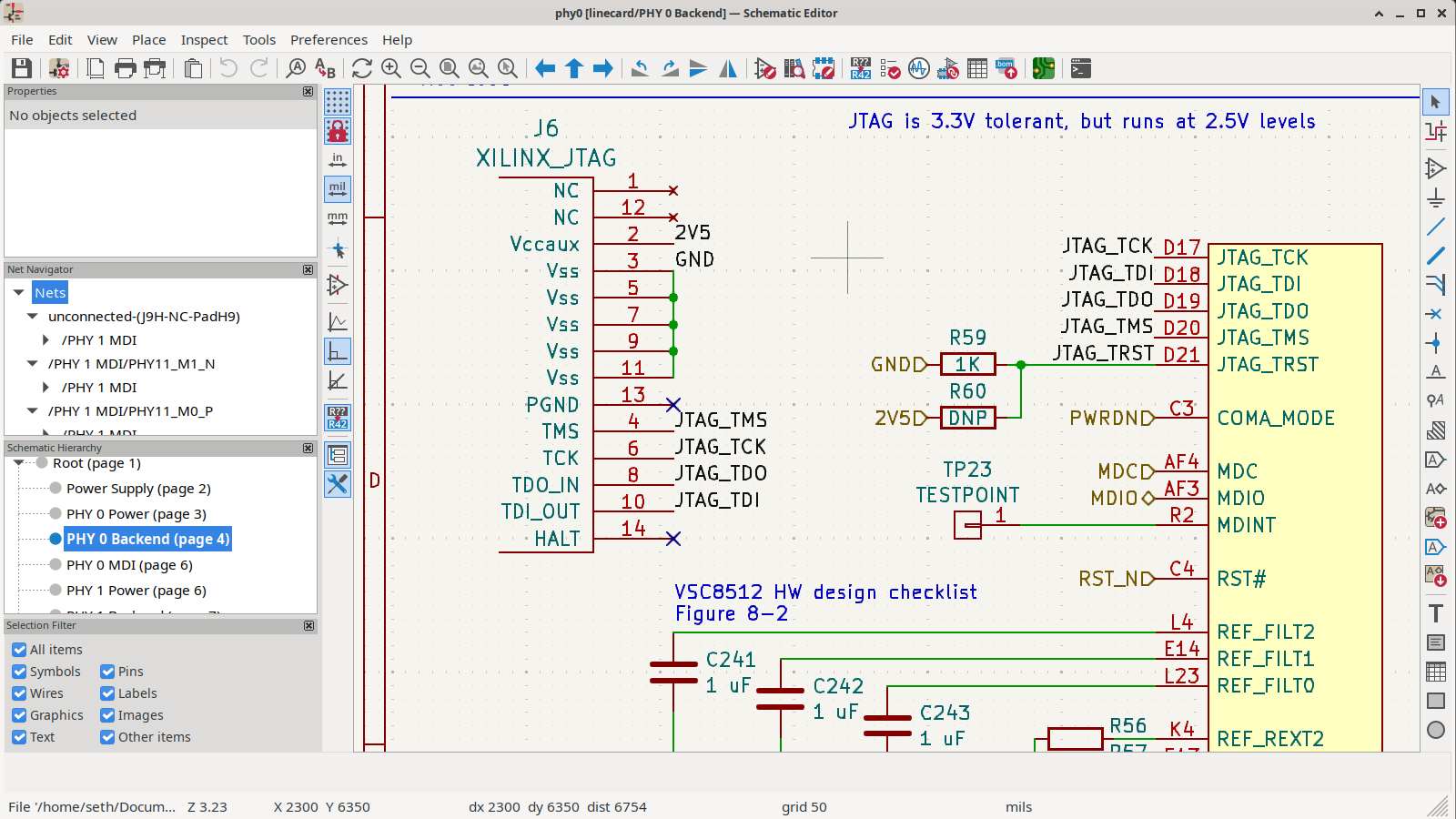

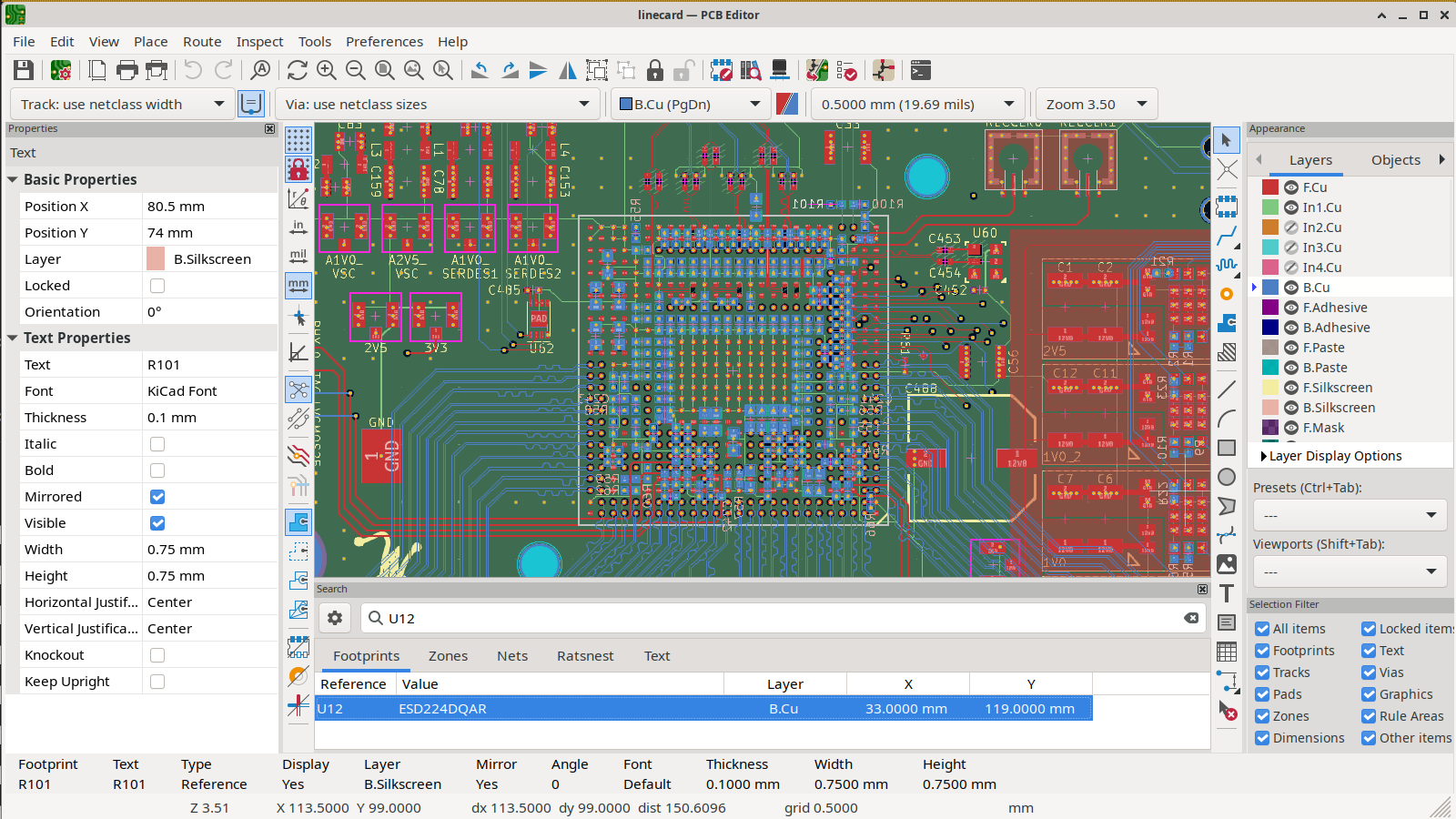

KiCad is a free and open-source electronics design automation (EDA) suite. It features schematic capture, integrated circuit simulation, printed circuit board (PCB) layout, 3D rendering, and plotting/data export to numerous formats. KiCad also includes a high-quality component library featuring thousands of symbols, footprints, and 3D models. KiCad has minimal system requirements and runs on Linux, Windows, and macOS.
Permissions
2 permissions weaken the sandbox. Flatsonar asks before installing.
- X11 display: X11 lets apps read input and windows of other apps
--socket=x11 - full access to your home folder
--filesystem=home - inter-process communication (needed for X11)
--share=ipc - network
--share=network - GPU acceleration
--device=dri - access to /media
--filesystem=/media - access to /run/media
--filesystem=/run/media
Who publishes this
The creator demonstrably controls this app id: Flathub verification, the hosting account owns the namespace, or a well-known file on their domain.
- verified on Flathub: the developer proved they control this app id
publisher:flathub
Maintenance
Recent activity on the upstream repository, or built and reviewed by Flathub.
No staleness signals: recent activity, or built and reviewed by Flathub.
