Musa CAD

by Musa CAD contributors

Fast, precise 2D drafting

Sandboxed Verified creator

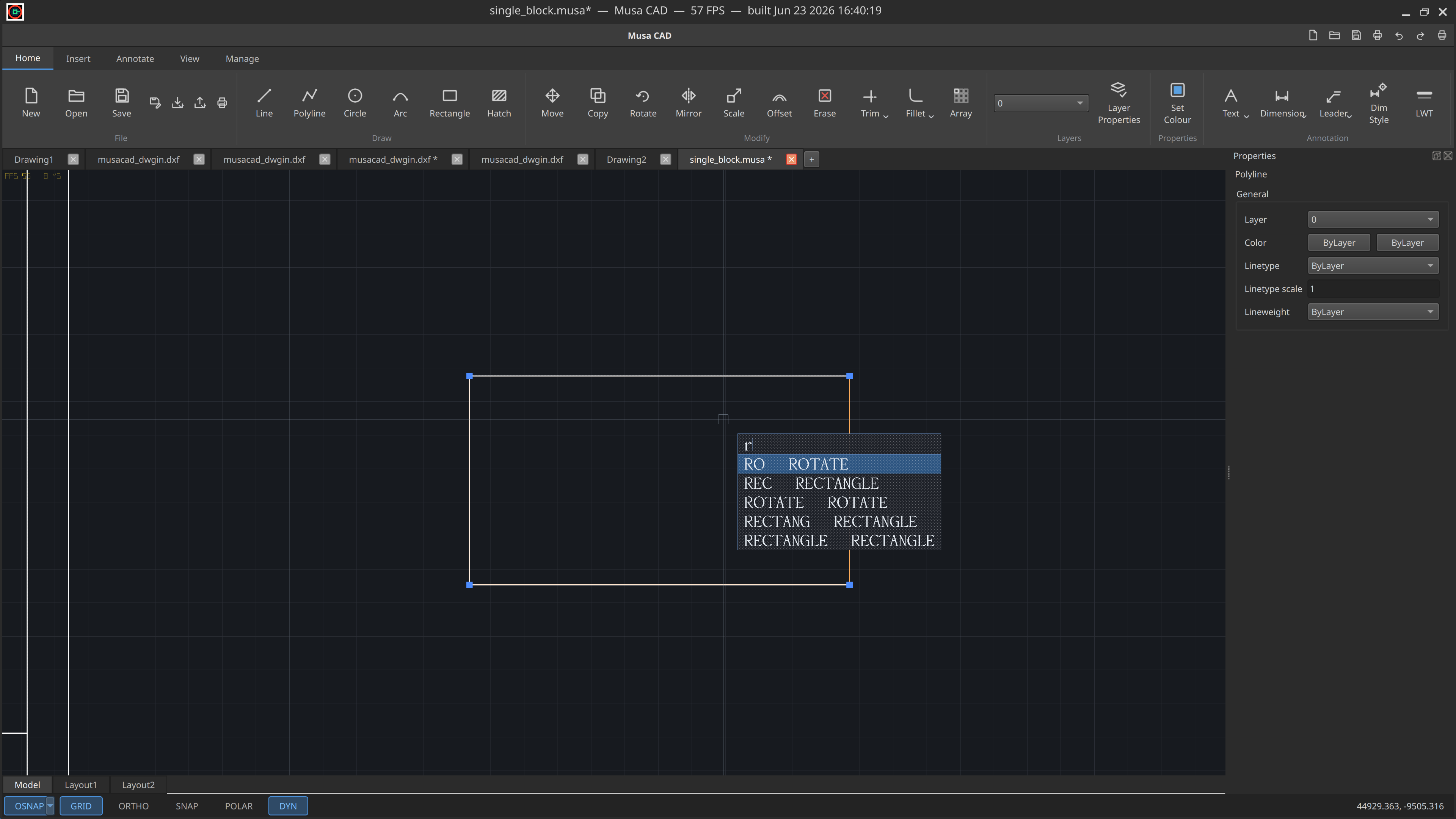

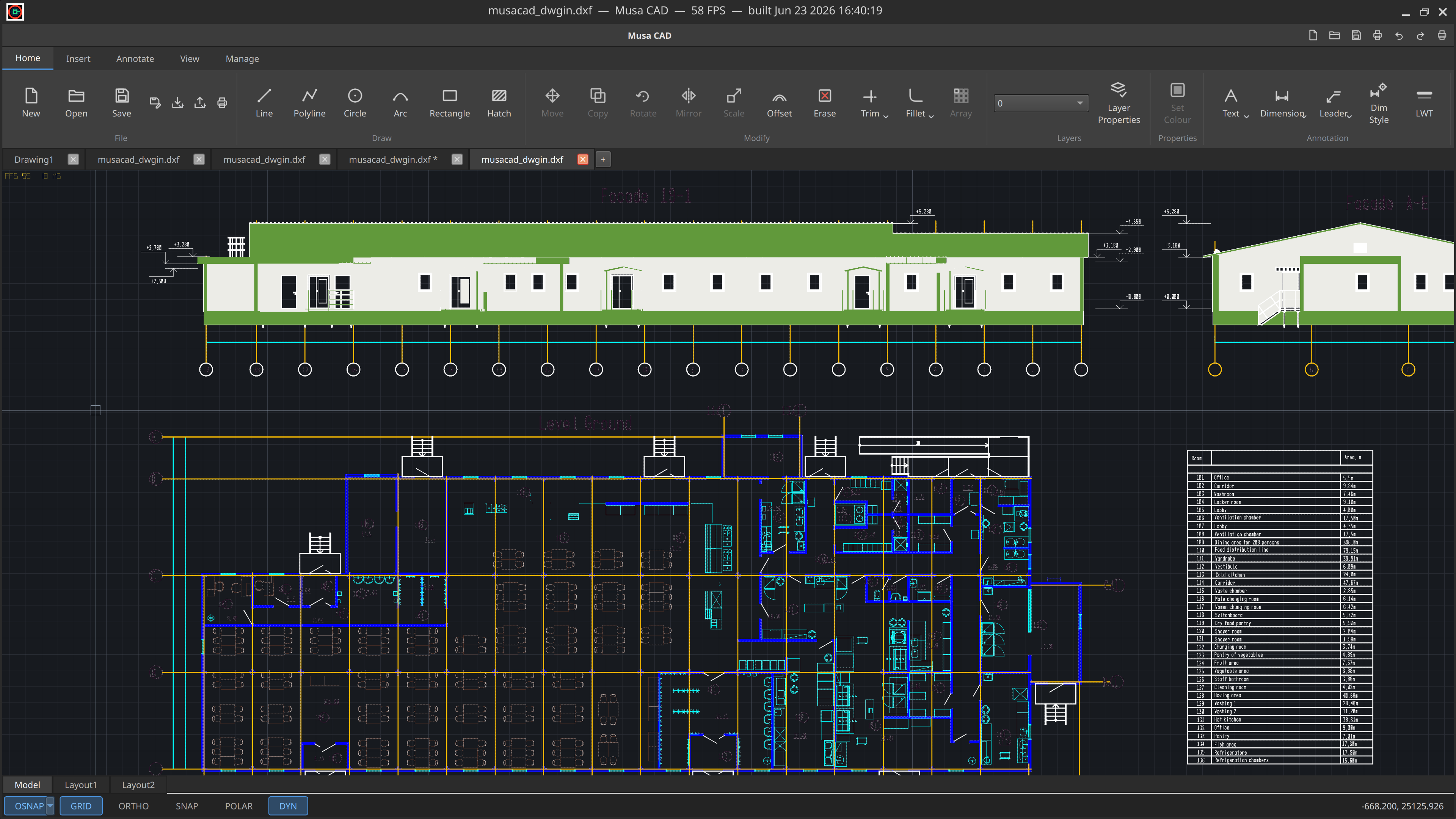

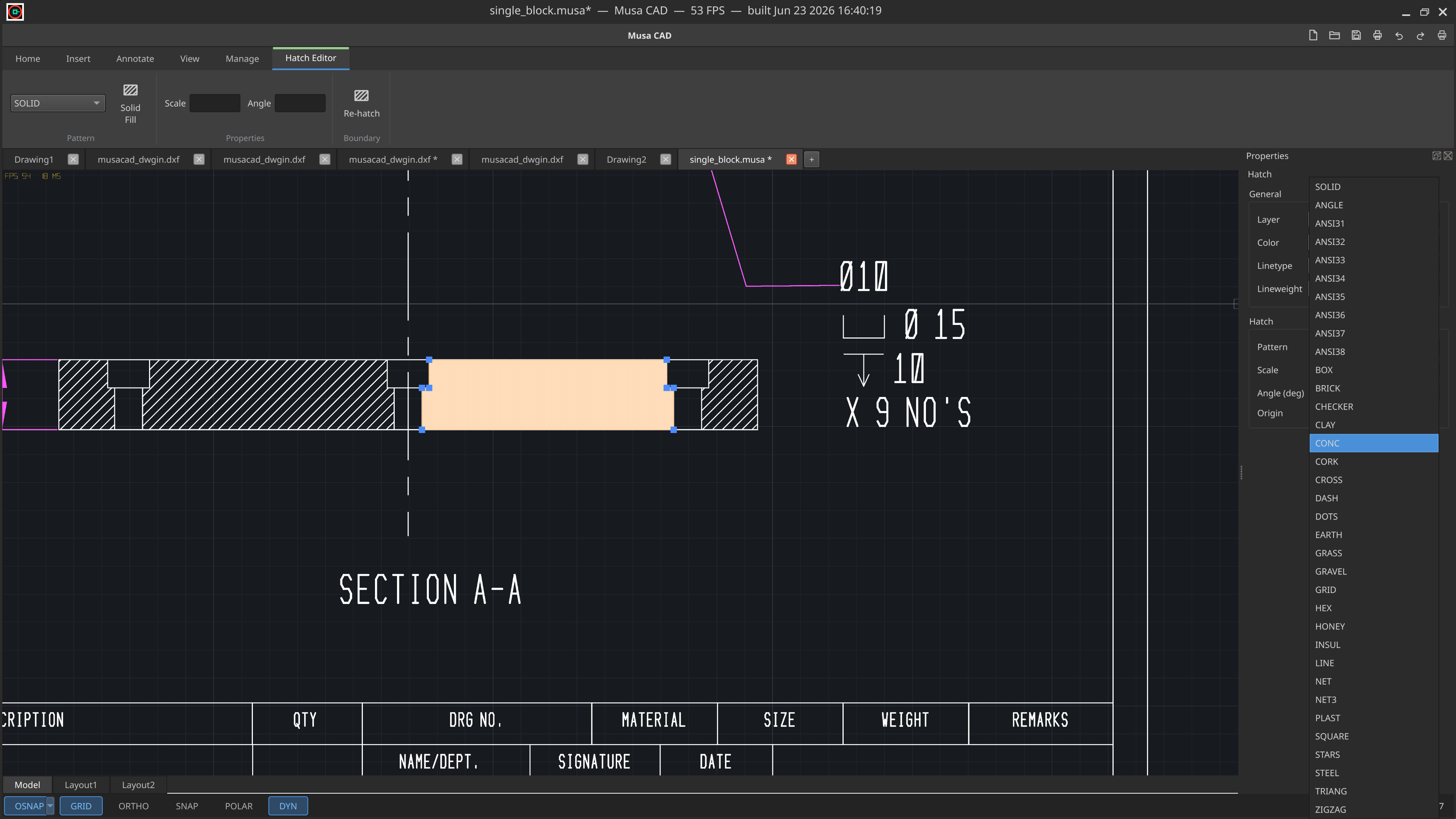

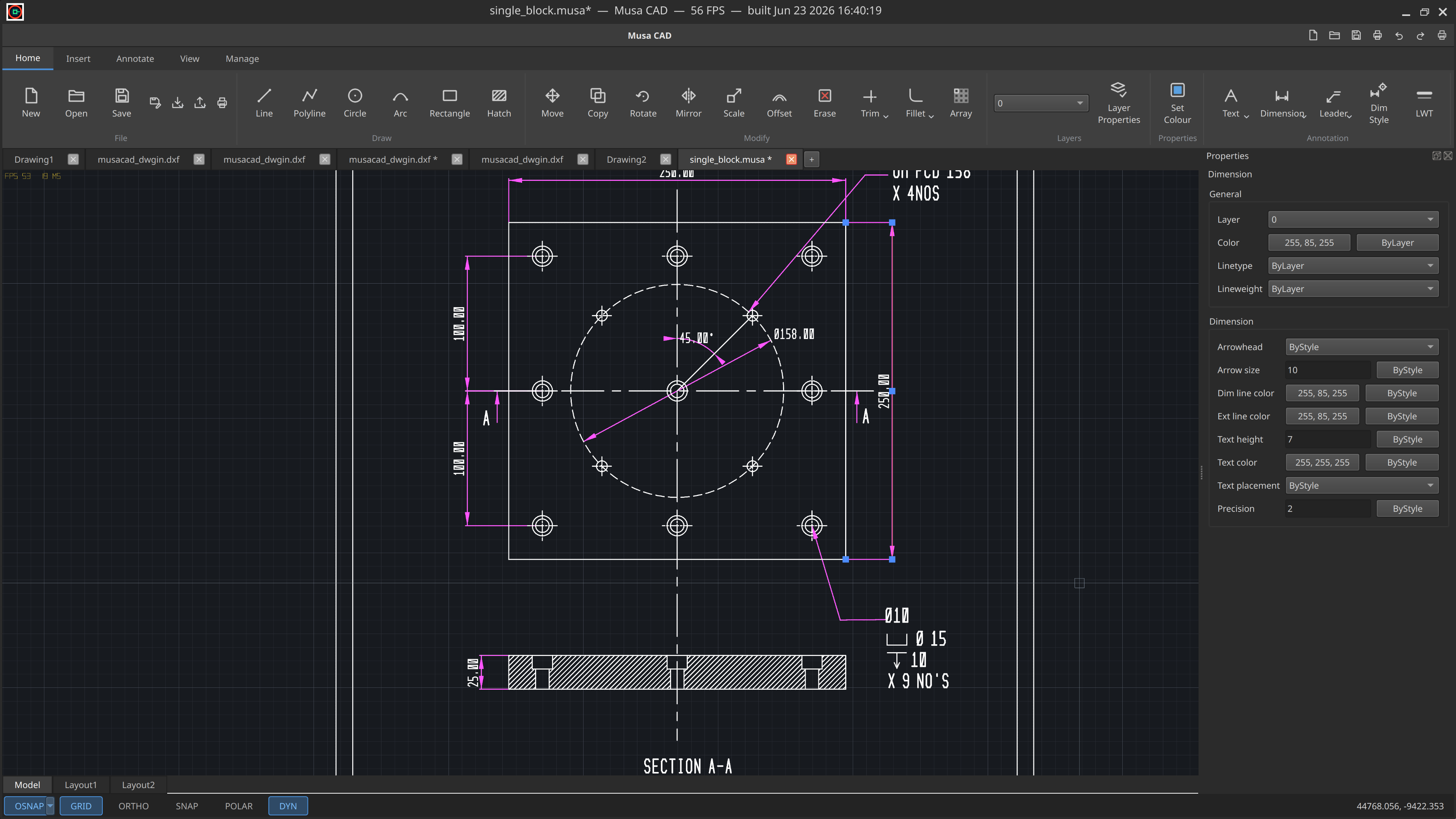

Screenshot 1 Screenshot 2 Screenshot 3 Screenshot 4 Screenshot 5 Screenshot 6

About

Musa CAD is a 2D drafting application for technical, architectural and engineering drawings. It follows AutoCAD's ribbon, command line, prompts and shortcuts, so a drafter's habits carry over, and its multi-threaded, GPU-accelerated core keeps even large drawings smooth to pan, zoom and edit.

Features:

  • Lines, polylines with widths, arcs, circles, ellipses, splines, hatches and gradients
  • Move, copy, rotate, scale, stretch, trim, extend, fillet, offset and arrays, with grips
  • Object snaps, polar and object snap tracking, and dynamic input at the cursor
  • Dimensions, leaders, text, tables and geometric tolerancing
  • Layers, linetypes, lineweights, blocks with attributes and external references
  • Layouts with viewports, and plotting to PDF or a printer
  • DXF read and write; DWG through the free ODA File Converter
  • Several drawings open at once in tabs

Permissions

Everything this app can reach outside its sandbox. Nothing here weakens it.

  • inter-process communication (needed for X11)
    --share=ipc
  • network
    --share=network
  • X11 display, only when Wayland is unavailable
    --socket=fallback-x11
  • Wayland display
    --socket=wayland
  • GPU acceleration
    --device=dri
  • access to xdg-config/kdeglobals
    --filesystem=xdg-config/kdeglobals:ro
  • talks to com.canonical.AppMenu.Registrar
    --talk-name=com.canonical.AppMenu.Registrar
  • talks to org.kde.kconfig.notify
    --talk-name=org.kde.kconfig.notify
  • talks to org.kde.KGlobalSettings
    --talk-name=org.kde.KGlobalSettings

Who publishes this

The creator demonstrably controls this app id: Flathub verification, the hosting account owns the namespace, or a well-known file on their domain.

  • verified on Flathub: the developer proved they control this app id
    publisher:flathub

Maintenance

Recent activity on the upstream repository, or built and reviewed by Flathub.

No staleness signals: recent activity, or built and reviewed by Flathub.
