Syntalos

by Matthias Klumpp

Synchronized data acquisition from diverse sources and flexible experiment control

Extensive permissions Verified creator

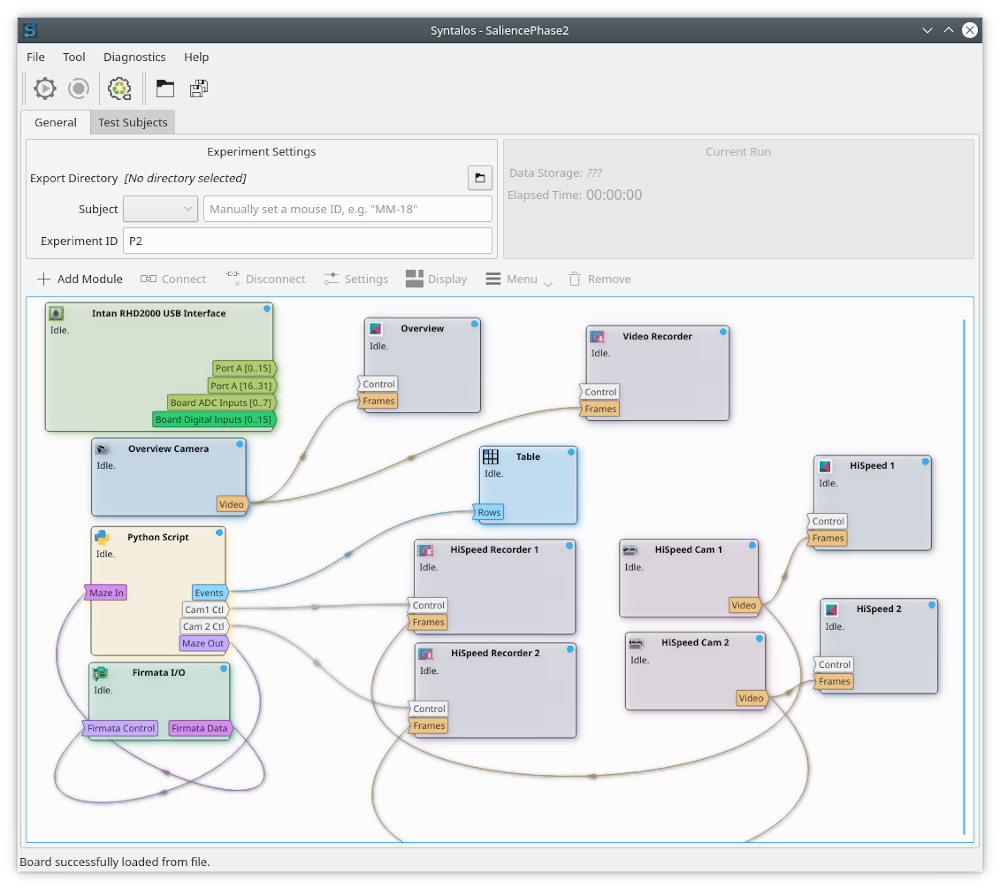

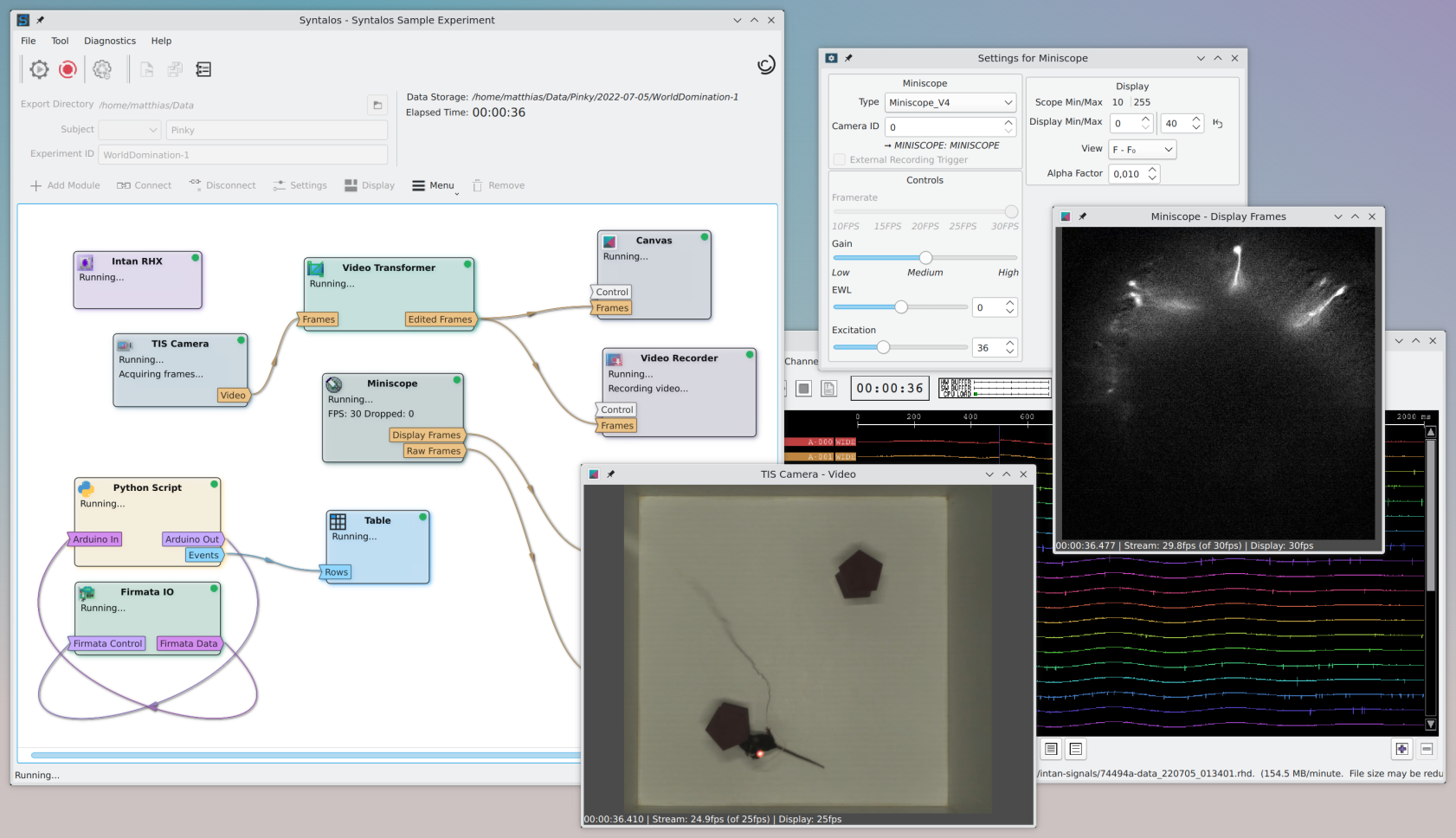

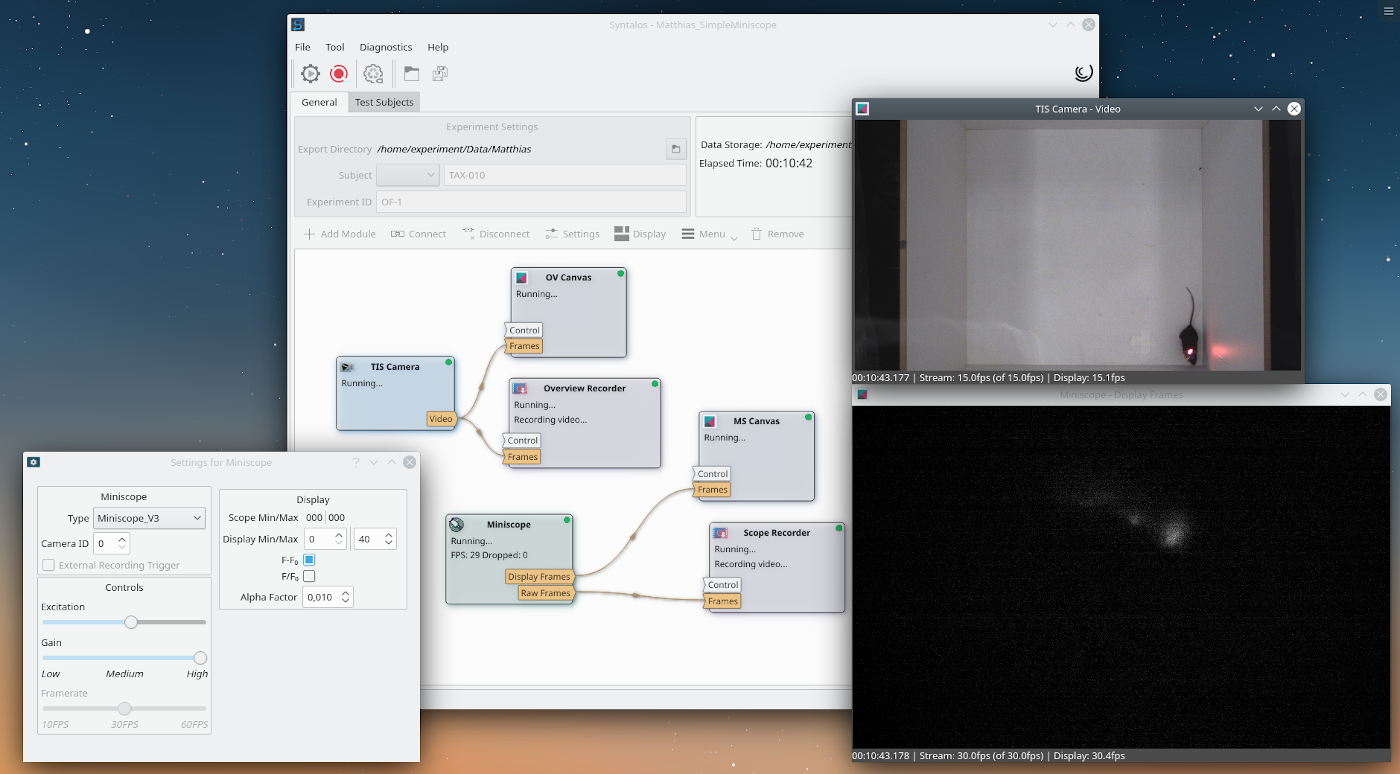

Screenshot 1 Screenshot 2 Screenshot 3

About

Syntalos is a software for timestamp-synchronized parallel data acquisition from diverse data sources and for closed-loop interventions. Among many other things, Syntalos supports:

  • Intan RHD/RHS systems, Open Ephys acquisition boards, and Neuropixels probes via remote SpikeGLX
  • UCLA Miniscopes for calcium imaging in freely moving animals
  • Many industrial and generic cameras
  • Microcontrollers and I/O boards via Firmata or MicroPython
  • Online signal and video processing

The modularity of Syntalos allows it to be used for a wide variety of experiments, and it often can be used without any programming skills. Data sources, sinks, and processing blocks can be connected graphically with virtual "wires" to form a data flow graph using drag & drop, to represent how data should be acquired, displayed, or stored. If more flexibility is needed, Syntalos can be extended with Python scripts, live-programmed microcontrollers, or custom modules written in Python or C++. For all data sources, Syntalos ensures timestamps of incoming data are aligned, so the individual pieces of data can be correlated without additional processing or external synchronization. Multiple Syntalos instances on different computers can also be started and stopped in sync over the network.

All data and metadata generated from an experiment run is stored in a well-defined, comprehensive structure, making it easy to compare, pool, or share data between experimentalists with different research questions.

Permissions

6 permissions weaken the sandbox. Flatsonar asks before installing.

  • unrestricted access to the session D-Bus (all your running apps)
    --socket=session-bus
  • unrestricted access to the system D-Bus (system services, hardware)
    --socket=system-bus
  • all devices (/dev): webcams, disks, raw hardware
    --device=all
  • full access to your entire file system
    --filesystem=host
  • X11 display: X11 lets apps read input and windows of other apps
    --socket=x11
  • development features (ptrace, can inspect other processes in its sandbox)
    --allow=devel
  • inter-process communication (needed for X11)
    --share=ipc
  • network
    --share=network
  • audio
    --socket=pulseaudio
  • access to xdg-run/pipewire-0
    --filesystem=xdg-run/pipewire-0:ro
  • access to xdg-config/kdeglobals
    --filesystem=xdg-config/kdeglobals:ro
  • access to /run/udev
    --filesystem=/run/udev:ro
  • Bluetooth
    --allow=bluetooth
  • talks to com.canonical.AppMenu.Registrar
    --talk-name=com.canonical.AppMenu.Registrar
  • talks to org.kde.kconfig.notify
    --talk-name=org.kde.kconfig.notify
  • talks to org.kde.KGlobalSettings
    --talk-name=org.kde.KGlobalSettings

Who publishes this

The creator demonstrably controls this app id: Flathub verification, the hosting account owns the namespace, or a well-known file on their domain.

  • verified on Flathub: the developer proved they control this app id
    publisher:flathub

Maintenance

Recent activity on the upstream repository, or built and reviewed by Flathub.

No staleness signals: recent activity, or built and reviewed by Flathub.
