GIScan

by Sjoerd Broekhuijsen

Read and analyze GISAXS data stored in cbf format

Broad permissions Verified creator GPL-3.0-or-later v1.2.0
Install Source code

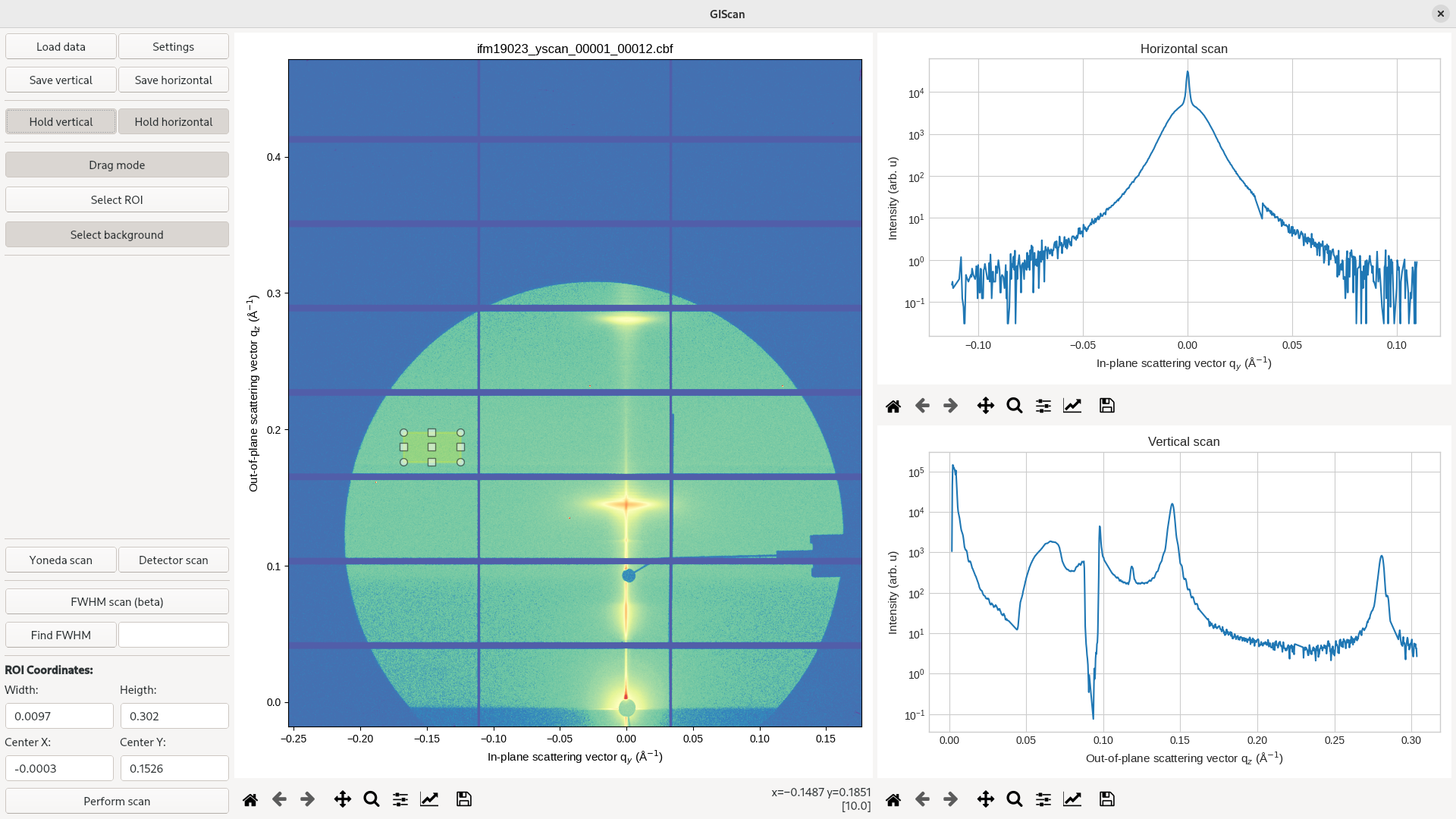

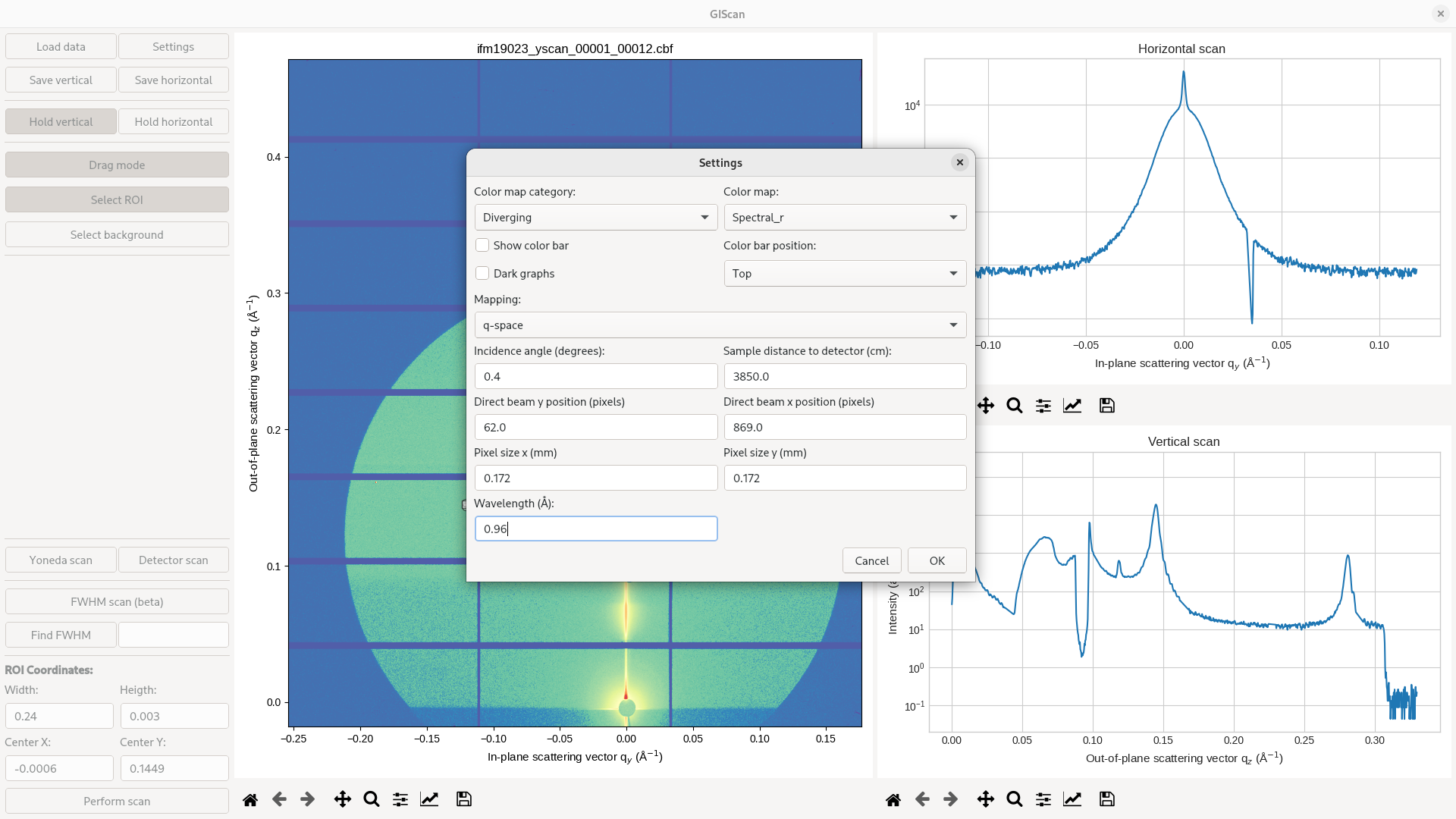

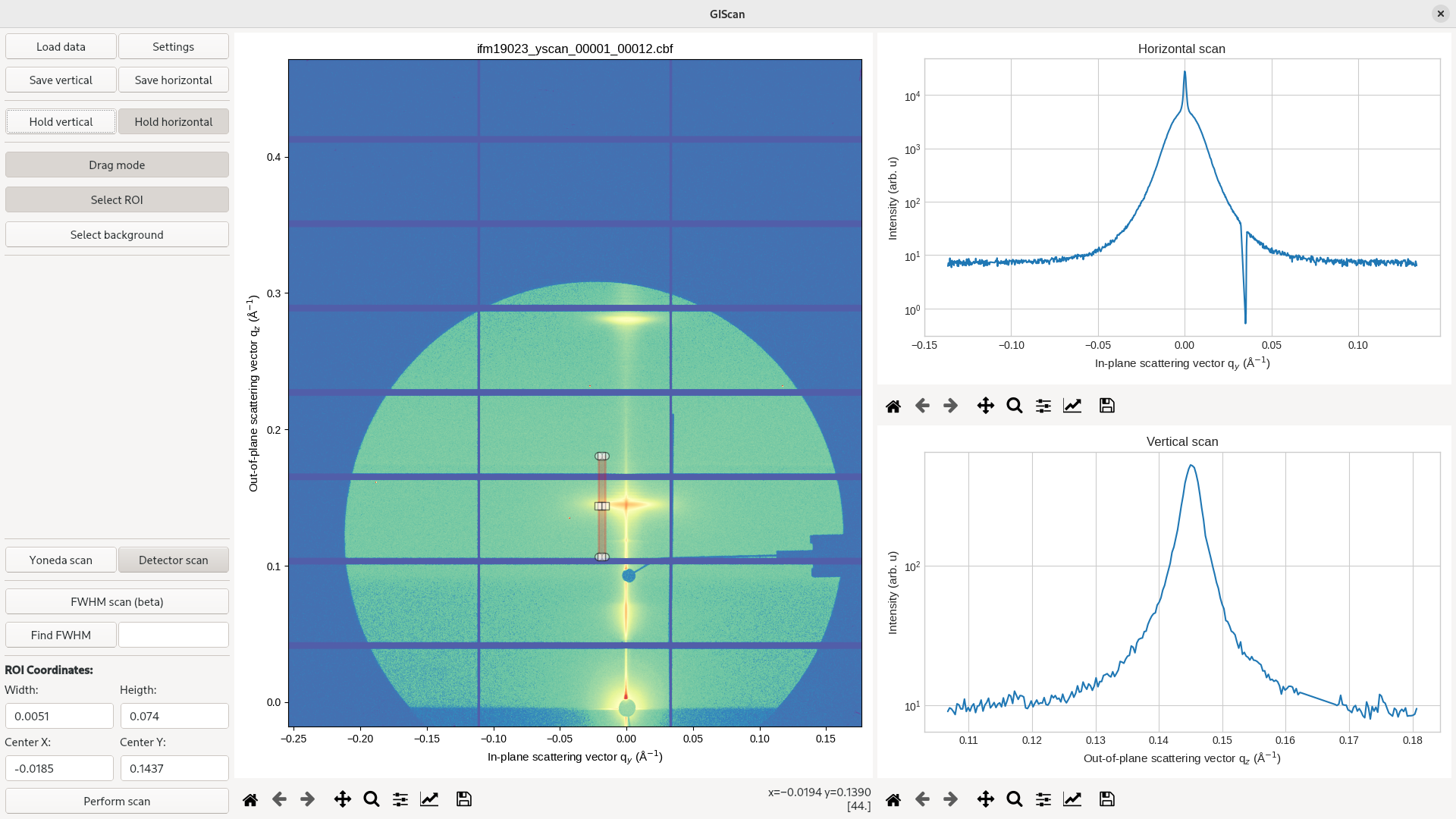

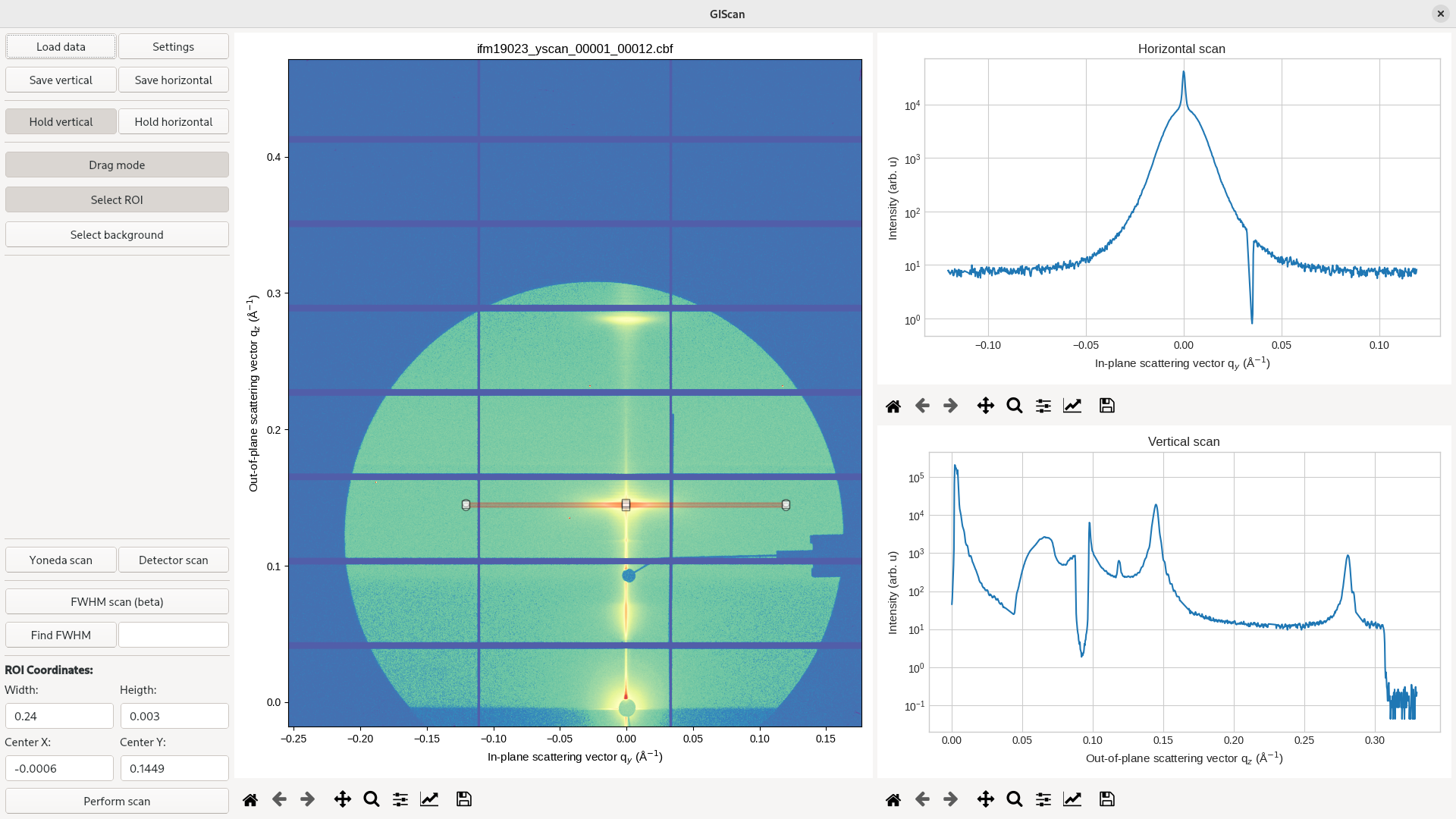

Screenshot 1 of GIScan Screenshot 2 of GIScan Screenshot 3 of GIScan Screenshot 4 of GIScan

About

GIScan is a simple tool to open and analyze data stored in cbf (Crystallographic Binary Format) files. While GIScan is primarily developed with the analyis of GISAXS data in mind, as obtained by the P03 beamline of PETRA III at the DESY Synchrotron in Hamburg, Germany, it should be compatible with any arbitrary cbf data.

GIScan handles raw data directly and doesn't need any a-priori data reduction. It supports features such as background subtraction, line scans along the Qy and Qz axis, detection of the full-width at half-maximum (FWHM) of diffraction peaks and coordinate conversion from pixels to reciprocal or angular space.

GIScan is mostly developed with the analysis of multilayers in mind but can be used for any arbitrary data stored in cbf format. If a beamline or datatype (be it GISAXS or GISANS) is not supported and you would like to use this tool, please submit an issue on the Github page so this can be arranged.

Permissions

2 permissions weaken the sandbox. Flatsonar asks before installing.

  • X11 display: X11 lets apps read input and windows of other apps
    --socket=x11
  • full access to your home folder
    --filesystem=home
  • network
    --share=network
  • inter-process communication (needed for X11)
    --share=ipc
  • GPU acceleration
    --device=dri
  • access to xdg-config/kdeglobals
    --filesystem=xdg-config/kdeglobals:ro
  • talks to com.canonical.AppMenu.Registrar
    --talk-name=com.canonical.AppMenu.Registrar
  • talks to org.kde.kconfig.notify
    --talk-name=org.kde.kconfig.notify
  • talks to org.kde.KGlobalSettings
    --talk-name=org.kde.KGlobalSettings

Who publishes this

The creator demonstrably controls this app id: Flathub verification, the hosting account owns the namespace, or a well-known file on their domain.

  • verified on Flathub: the developer proved they control this app id
    publisher:flathub

Maintenance

Recent activity on the upstream repository, or built and reviewed by Flathub.

No staleness signals: recent activity, or built and reviewed by Flathub.
